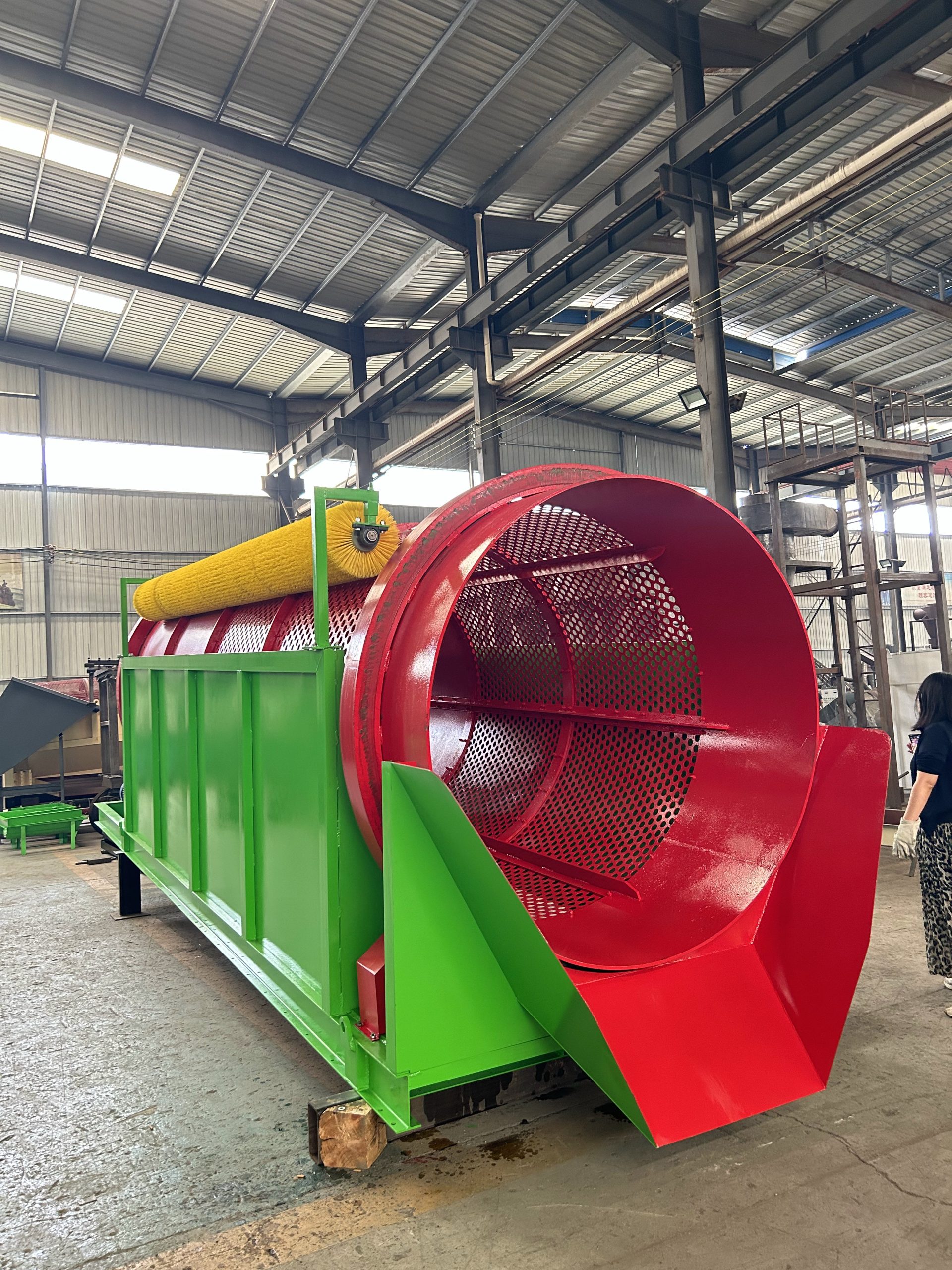

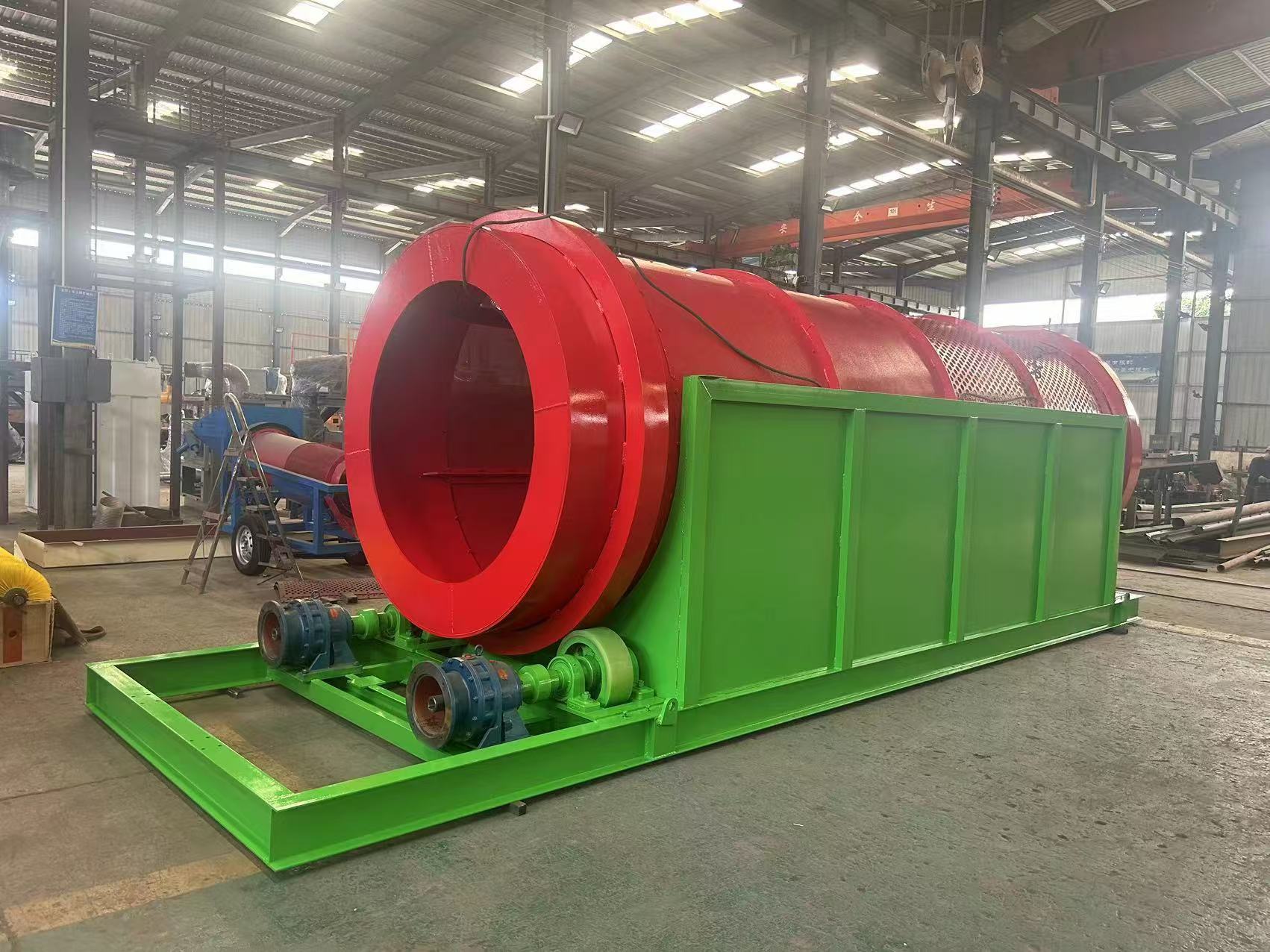

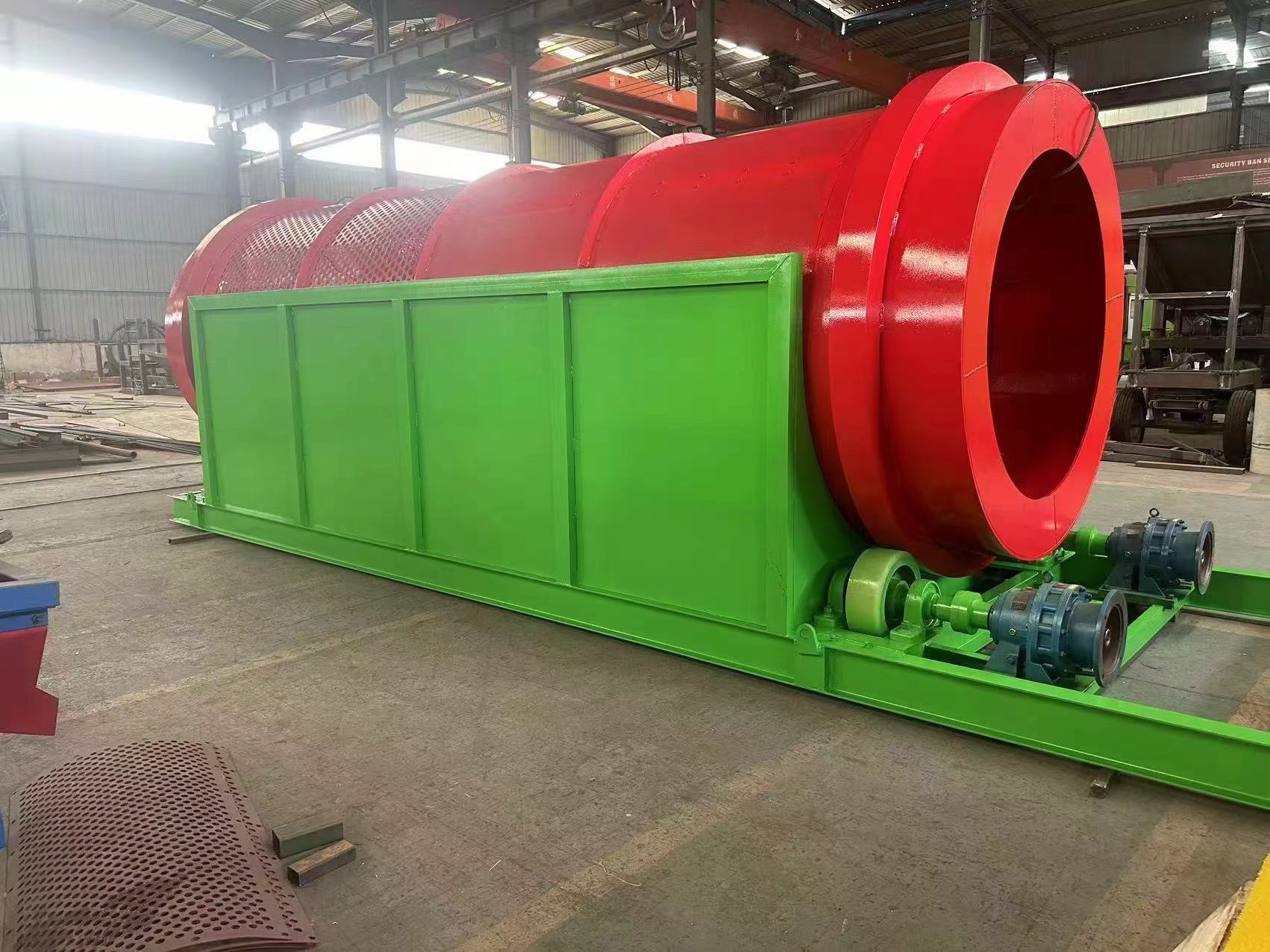

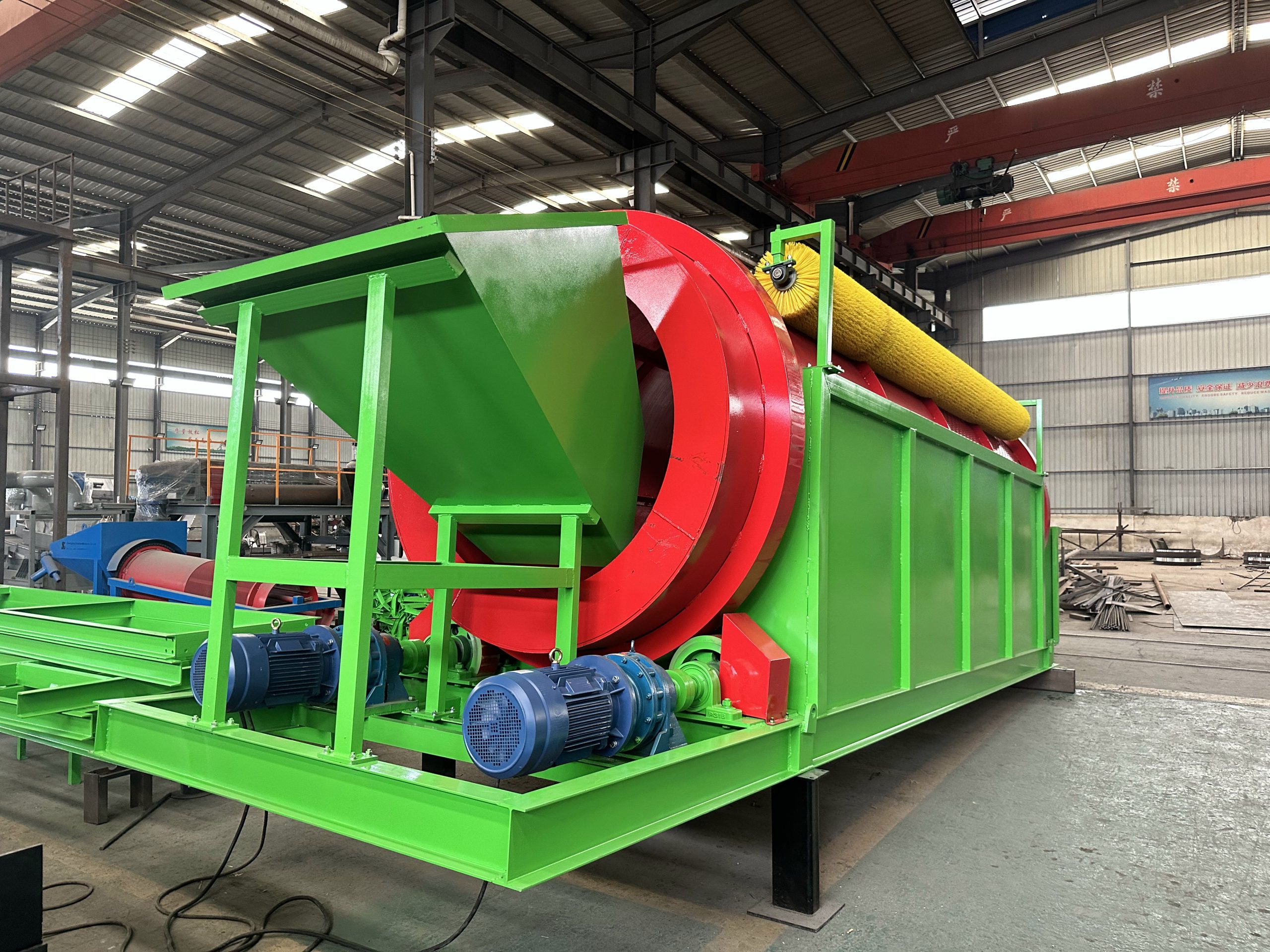

TS2050 Fixed Trommel Screen

This SINOLION TS2050 fixed trommel screen has a large processing capacity of 120m ³ per hour and advanced design, and is equipped with nylon material cleaning brushes. You don’t have to worry about your material clogging the screen, reducing efficiency and lifespan. The overall structure of TS2050 is simple, making it more convenient to install and use on the work site. At the same time, with a large processing capacity, many customers require a fixed production site. We will provide you with support chassis and foundation design drawings to make your on-site construction easier and greatly improve screening efficiency!

Features & Benefits

Large processing capacity

The processing capacity is 120m ³ per hour, with high quality and large processing capacity, the price is cost-effective!

Paired with a cleaning brush

Paired with a cleaning brush, effectively clean the mesh without worrying about clogging.

Can be used in various workplaces

Fixed design, matched with base and chassis. When your project has a large processing volume, it is convenient to fix your work site.

Higher quality extends service life

Thickened screen mesh and drum for greater durability. During production, we also consider usage and extend the service life.

Reasonable transportation arrangements

It can be transported using 40 containers, which is convenient and reasonable.

Support customization

We support customizing the most suitable solution for your screening site, and we can provide a complete production line. If you need it, please contact us

Specifications

Compare Models

Show Metric

General Dimensions and Weights
- Weight 14504 lbs 6585 kg
- Transport Length 21 ft 6.4 m
- Transport Width 7.38 ft 2.25 m
- Transport Height 8.3 ft 2.54 m
- Operation Length 22.2 ft 6.78 m
- Operation Width 7.7 ft 2.35 m
- Operation Height 16 ft 4.9 m
- Capacity 2120-6184 ft³/h 60-175 m³/h
Screen Drum
- Drum diameter 6.6 ft 2.0 m
- Roller length 16.4 ft 5.0 m
- Drum speed 12-16 rpm 12-16 rpm
- Drum Angle Adjustability 0-10 deg 0-10 deg
Screen Brushes
- Brush Diameter 141.7 in 360 cm
- Brush width 13.8 in 35 cm
- Bristle Material Nylon braiding Nylon braiding
