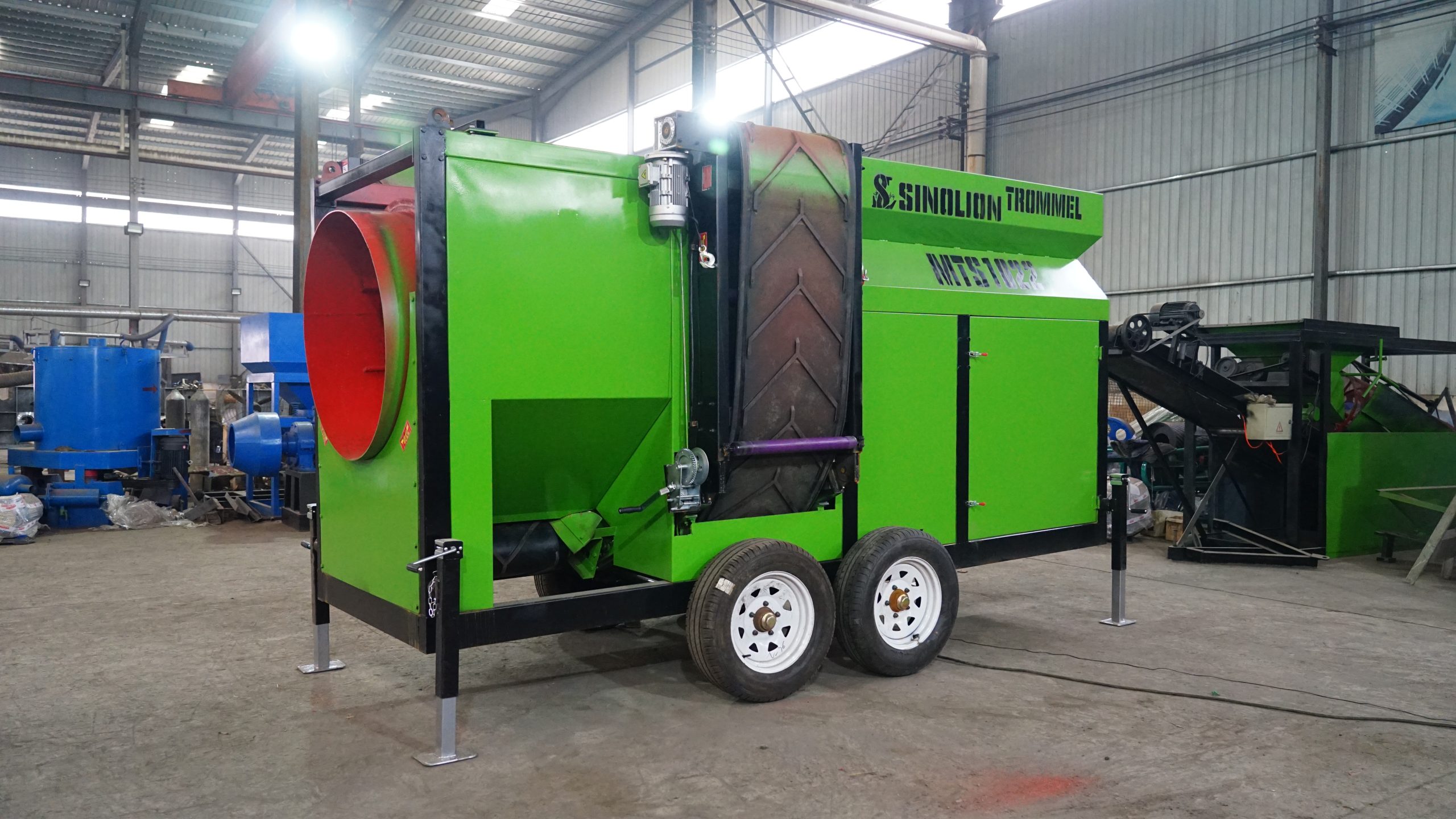

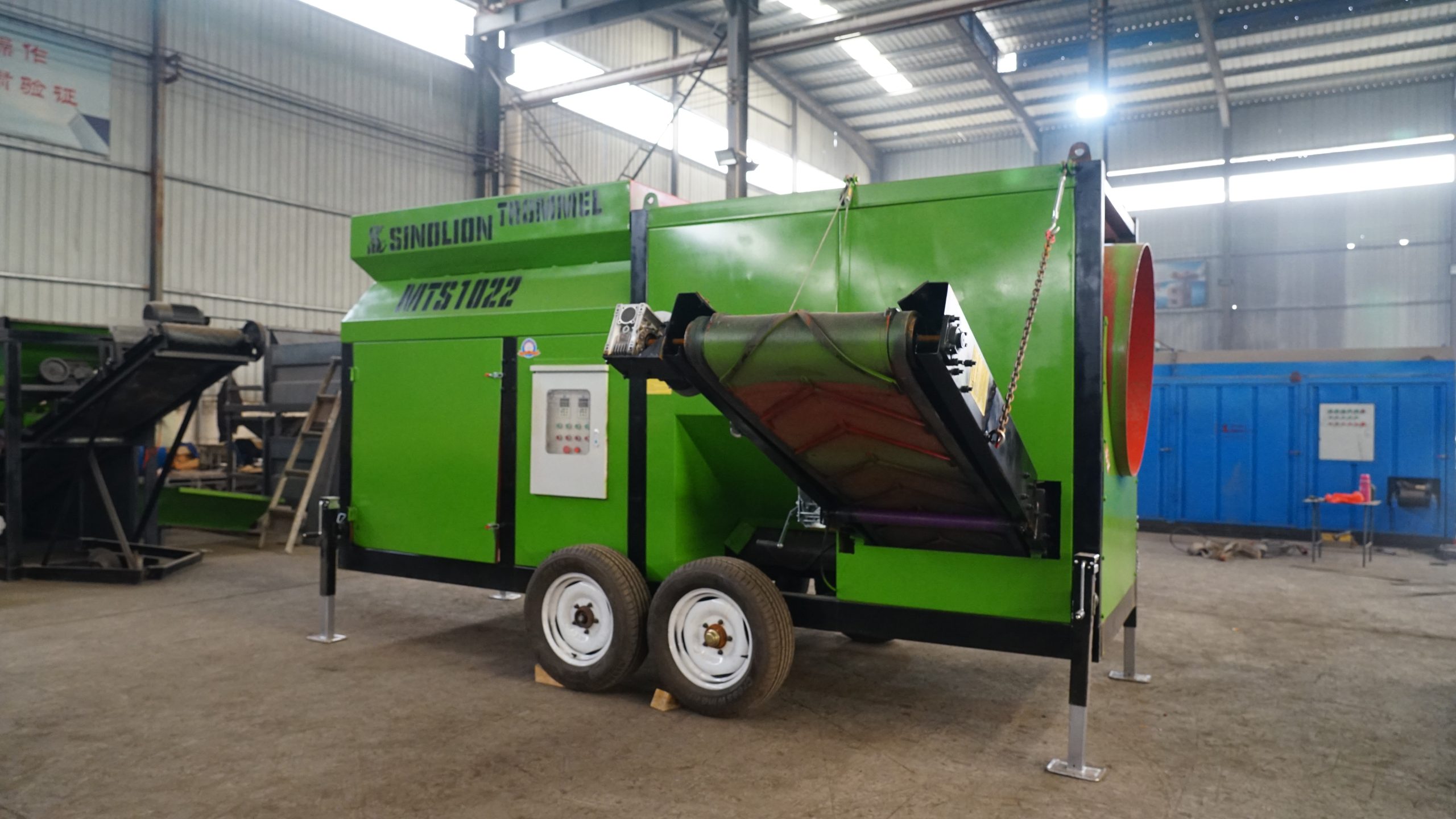

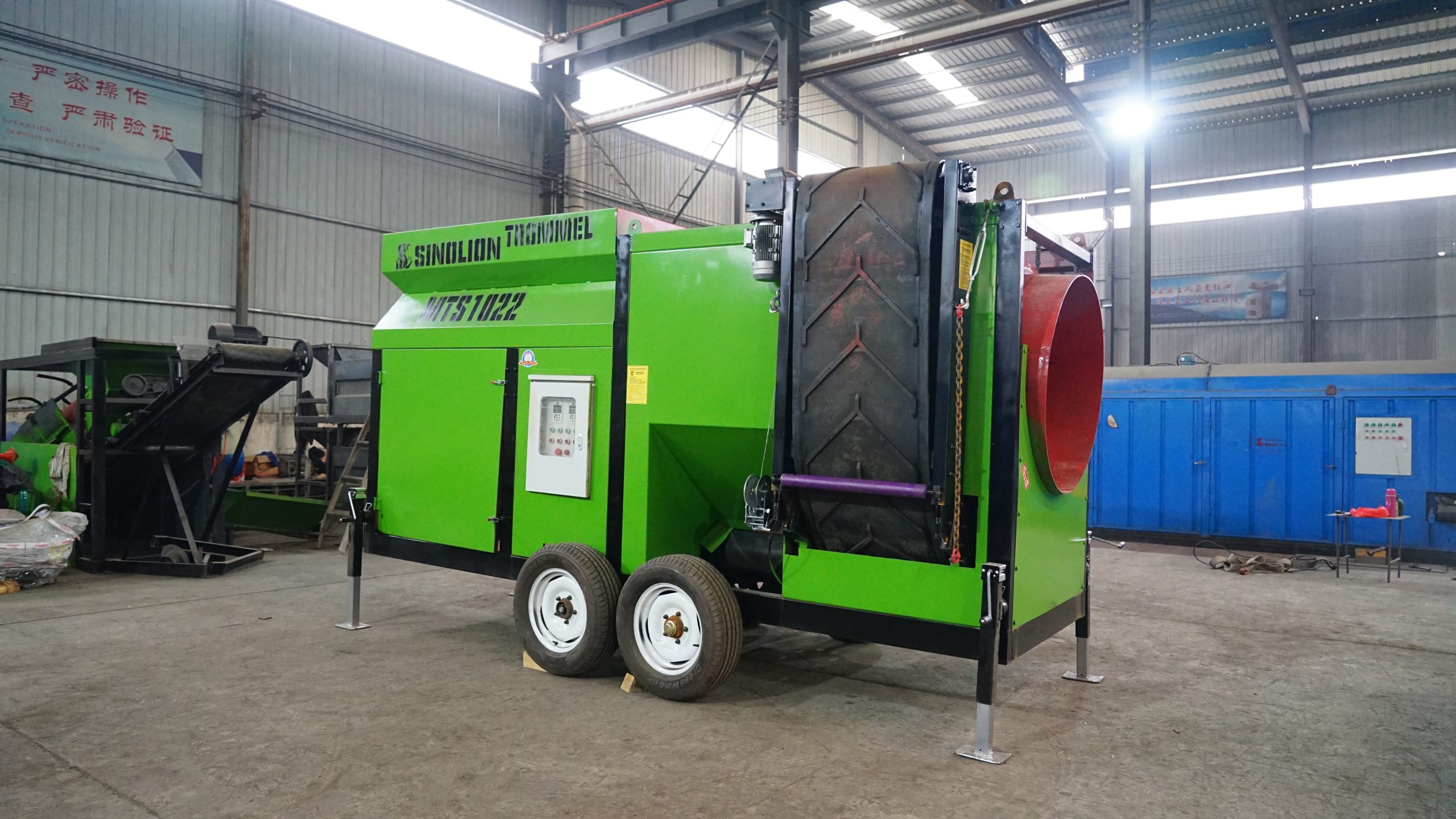

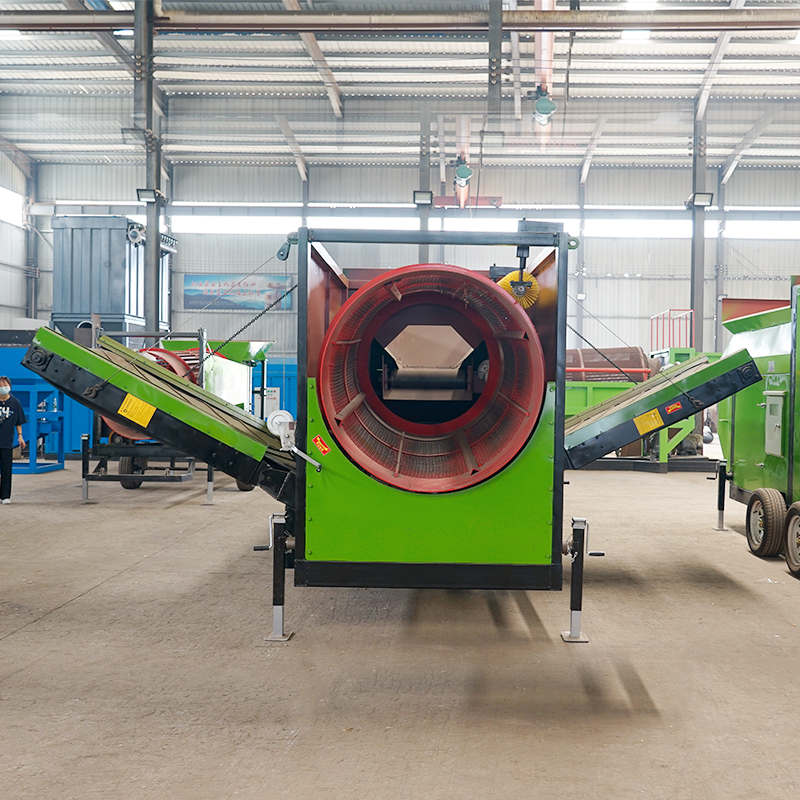

MTS1022 Trommel Screen

The MTS1022 is an efficient and flexible mobile trommel screening device designed for medium operations. Its compact structure combines mobility with powerful screening capabilities, allowing it to operate easily in various work environments. The design features cleaning brushes that help reduce material blockage on the screen, making it highly favored by customers. This equipment is easy to operate and has low maintenance costs, making it an ideal choice for enhancing production efficiency and meeting users.

Features & Benefits

High flexibility

It can be moved between different sites as needed, adapt to a variety of working environments, and improve efficiency.

Space utilization

The design structure is compact and can operate in a limited space, optimizing the structure and operating space.

Efficient screening

Efficient screening technology ensures fast and accurate grading of materials and improves work efficiency.

Anti-blocking design

Equipped with nylon cleaning brushes to prevent clogging of the screen aperture and improve screening continuity.

Low maintenance requirements

Simple structure, based on daily maintenance, reducing maintenance costs.

Strong durability

The use of high-strength materials can meet the working conditions of various environments, extend the service life of the equipment, and reduce maintenance cycles.

Specifications

Compare Models

Show Metric

General Dimensions and Weights
- Weight 6057 lbs 2750 kg
- Transport Length 14.4 ft 4.4 m
- Transport Width 6.3 ft 1.9 m
- Transport Height 6.9 ft 2.1 m
- Operation Length 14.4 ft 4.4 m
- Operation Width 14.7 ft 4.5 m
- Operation Height 8 ft 2.45 m
- Capacity 530-1413 ft³/h 15-40 m³/h
Screen Drum
- Drum diameter 3.3 ft 1 m
- Roller length 7.2 ft 2.2 m
- Drum speed 16-22 rpm 16-22 rpm
- Drum Angle Adjustability 0-4 deg 0-4 deg
Screen Brushes
- Brush Diameter
- Brush width 7.8 in 20 cm
- Bristle Material Nylon braiding Nylon braiding

Downloads

Product Manual
