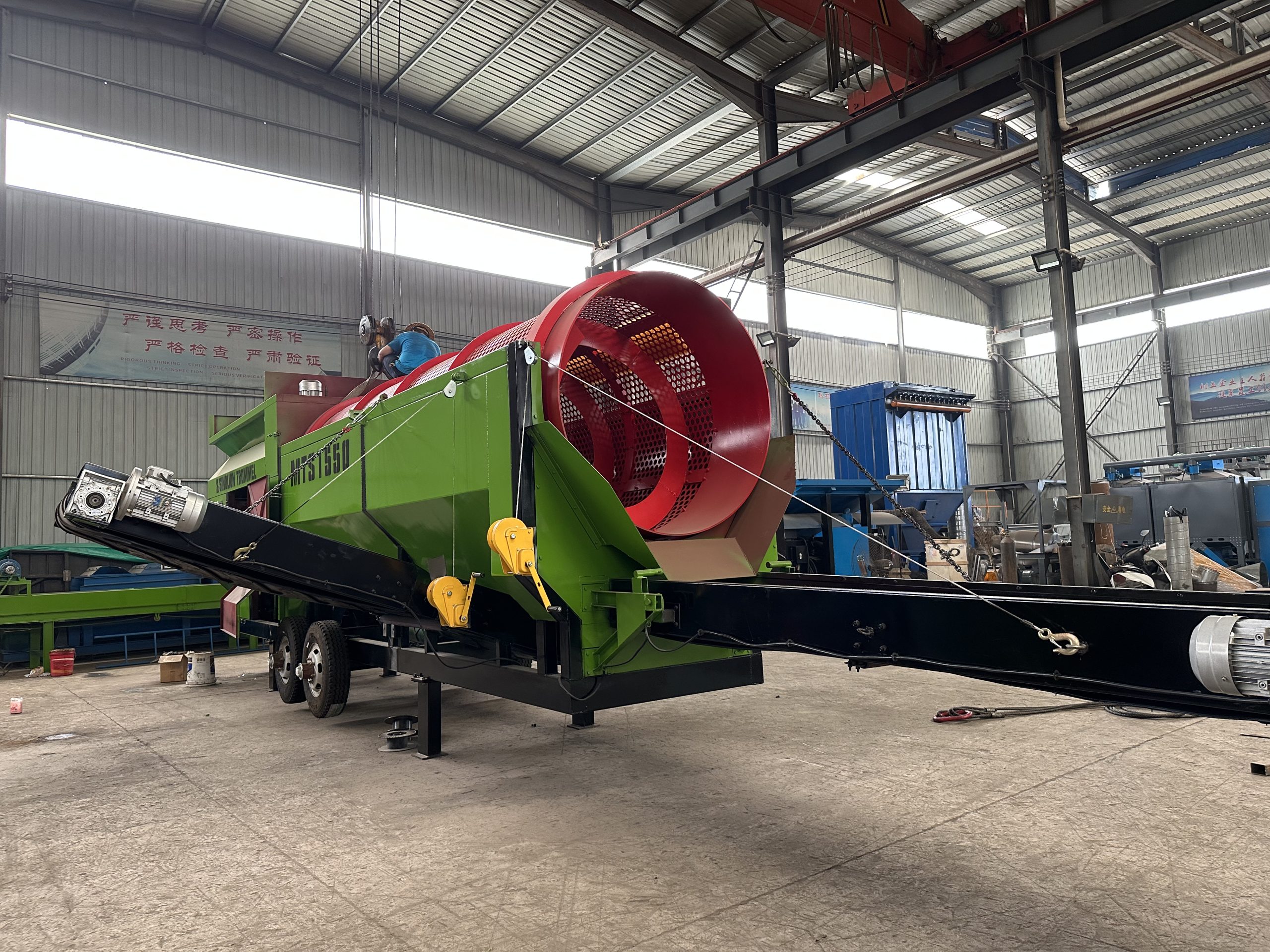

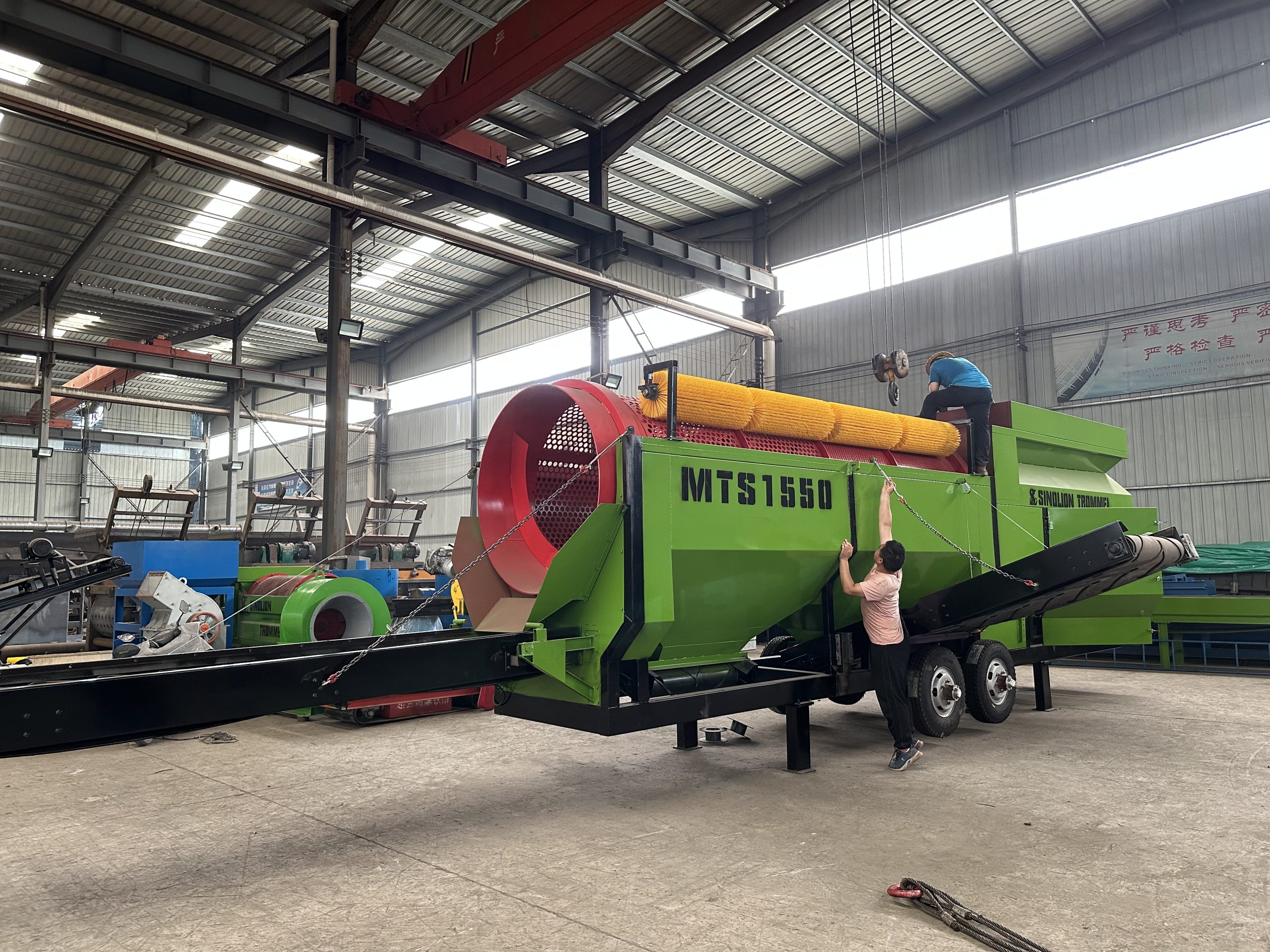

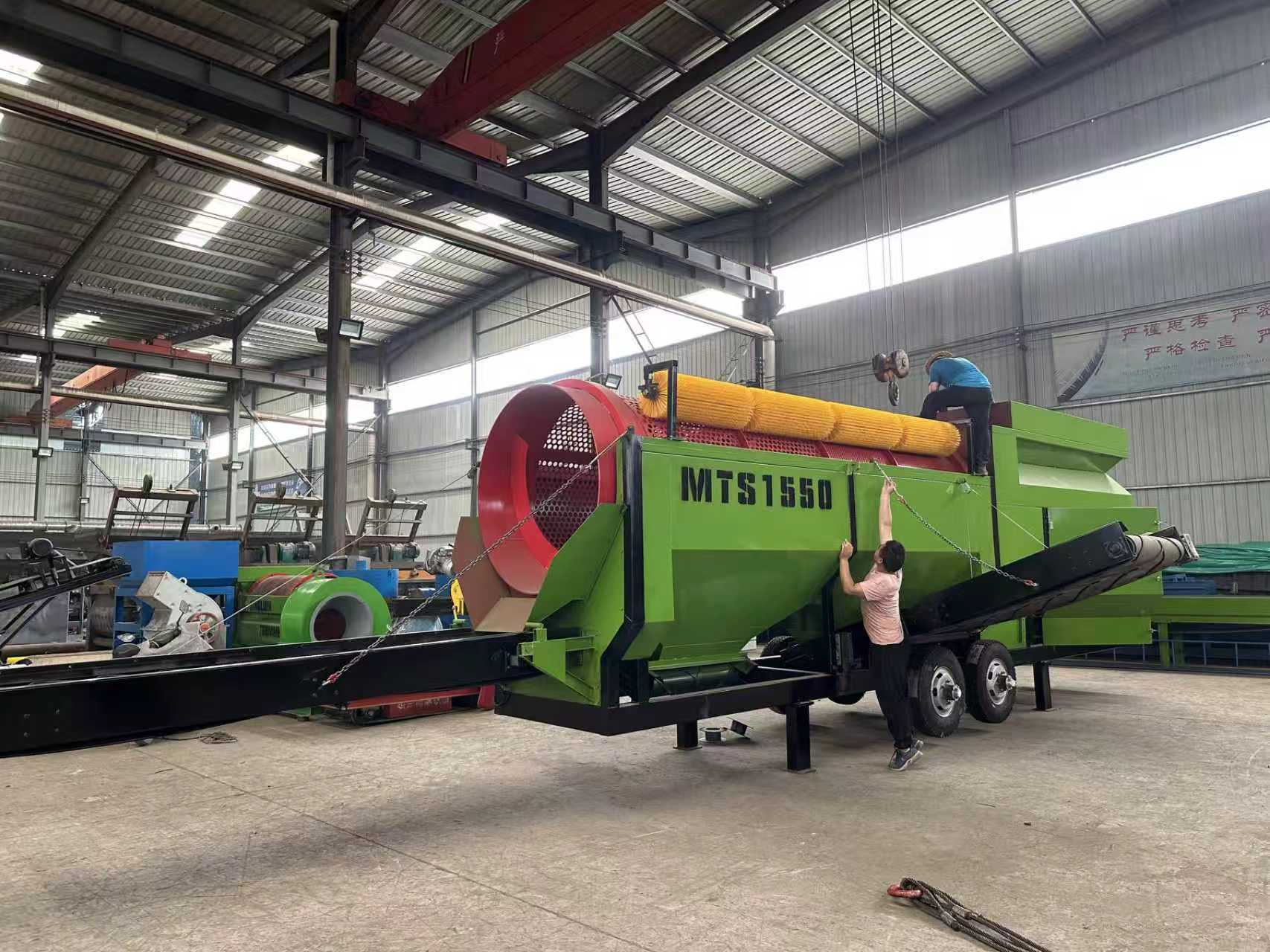

MTS1550 Mobile Garbage Screening Equipment

This MTS1550 mobile garbage sorting screen equipment is an environmentally friendly garbage sorting equipment with a compact design and high screening efficiency. The processing capacity of the MTS1550 mobile garbage sorting screen can reach 90 cubic meters per hour. After screening, larger materials can be obtained for sorting and recycling. It can maximize work efficiency.

Features & Benefits

Even Feeding

It is equipped with a larger hopper and a conveyor inside the hopper to ensure that the material is evenly transported into the hopper to avoid blockage.

Various Feeding Methods

It can meet a variety of feeding methods and can be fed by belt conveyors, loaders, excavators and grab buckets.

High Screening Efficiency

Its drum length is up to 5000 mm, with a longer screening length and screening area, and higher screening efficiency accuracy and screening efficiency.

Can Be Sorted Directly

The tail is equipped with a sorting platform. After screening, the garbage directly enters the sorting platform, and larger materials can be sorted and recycled manually.

Specifications

Compare Models

Show Metric

General Dimensions and Weights
- Weight 18811 lbs 8540 kg
- Transport Length 29.2 ft 8.9 m
- Transport Width 8.1 ft 2.47 m
- Transport Height 8.13 ft 2.48 m
- Operation Length 29.2 ft 8.9 m
- Operation Width 18.7 ft 5.7 m
- Operation Height 10.5 ft 3.22 m
- Capacity 1413-3887 ft³/h 40-110 m³/h
Screen Drum
- Drum diameter 4.9 ft 1.5 m
- Roller length 16.4 ft 5.0 m
- Drum speed 16-22 rpm 16-22 rpm
- Drum Angle Adjustability 0-4 deg 0-4 deg
Screen Brushes
- Brush Diameter 157.5 in 400 cm
- Brush width 9.84 in 25 cm
- Bristle Material Nylon braiding Or Stainless steel Nylon braiding Or Stainless steel
