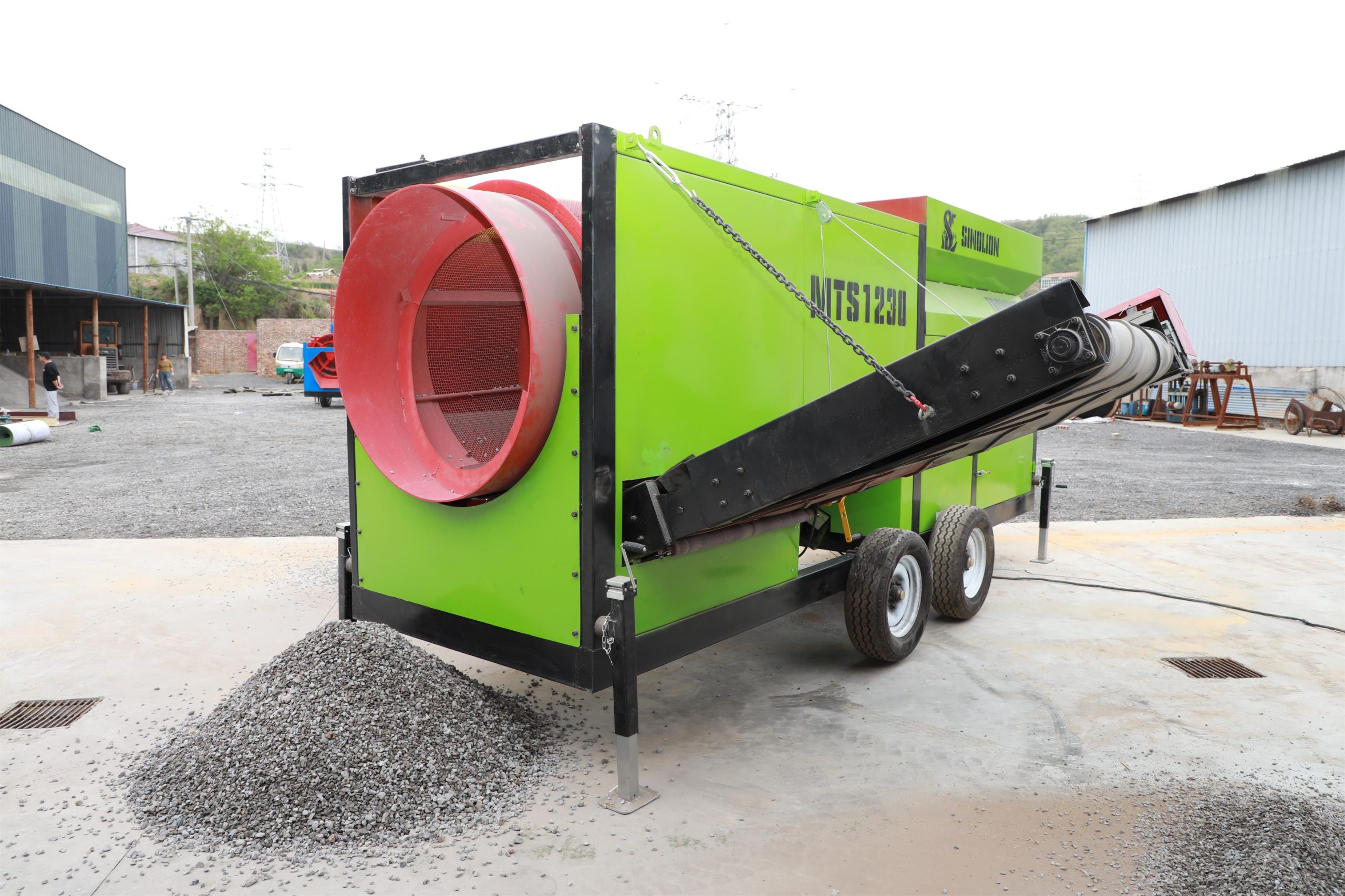

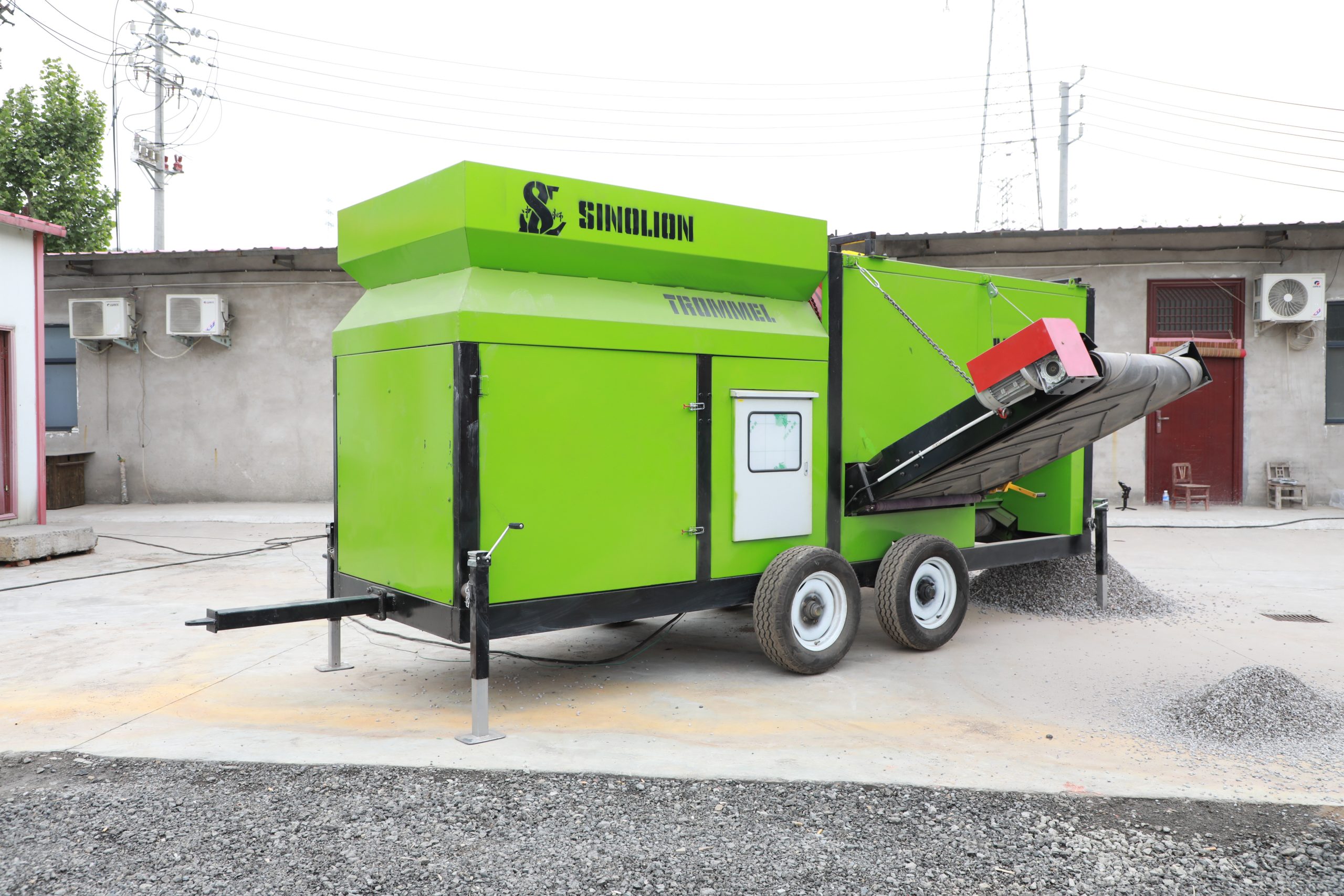

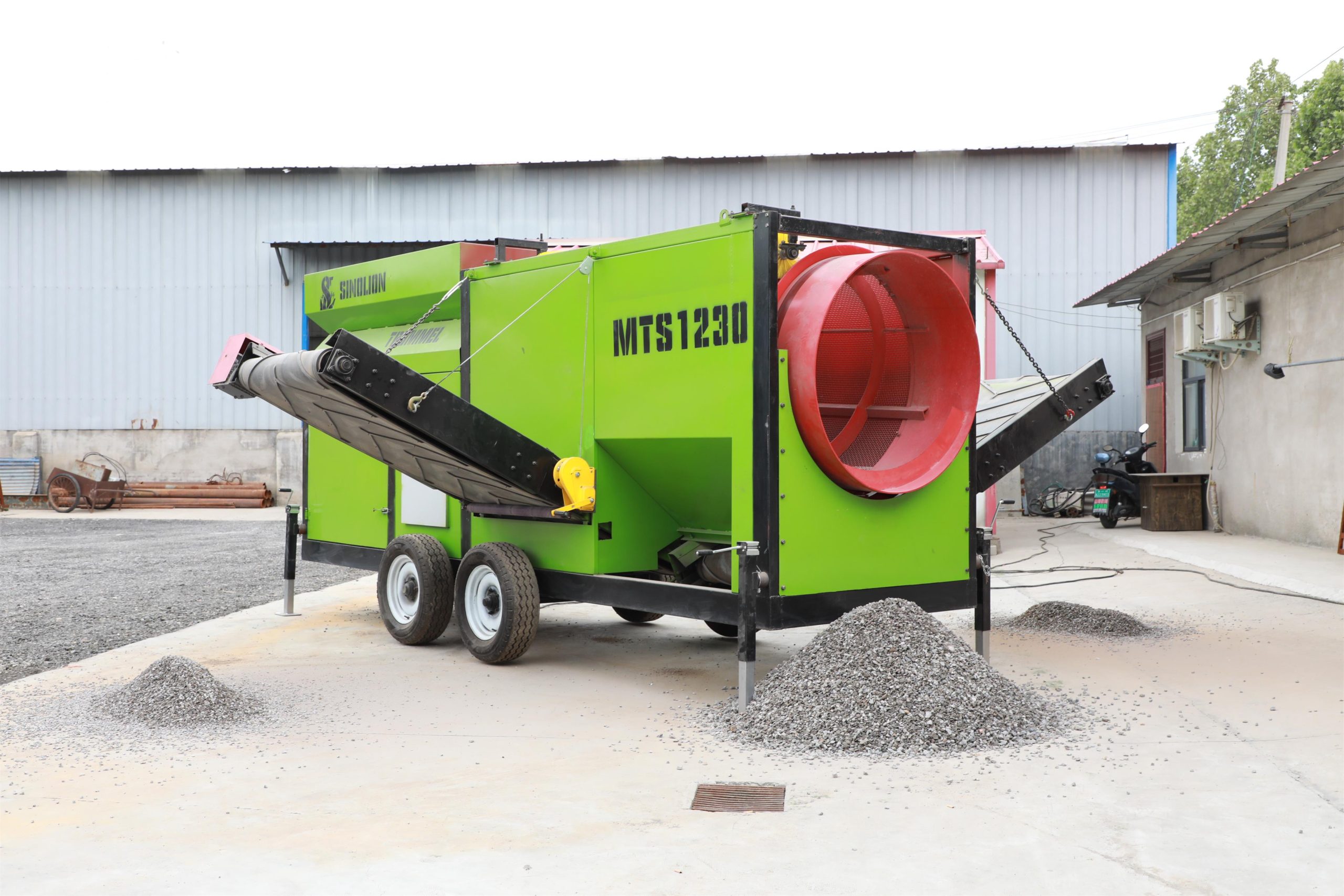

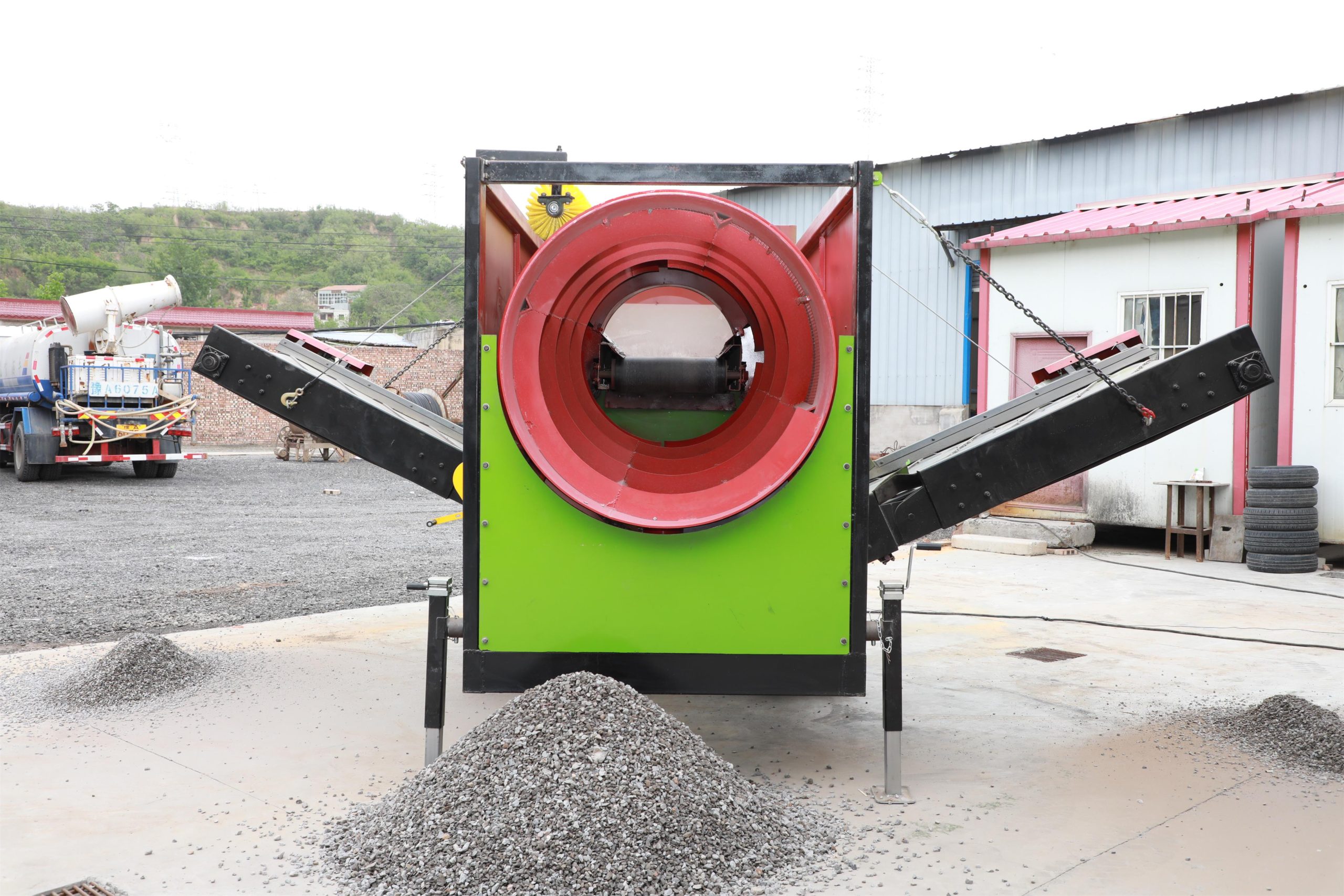

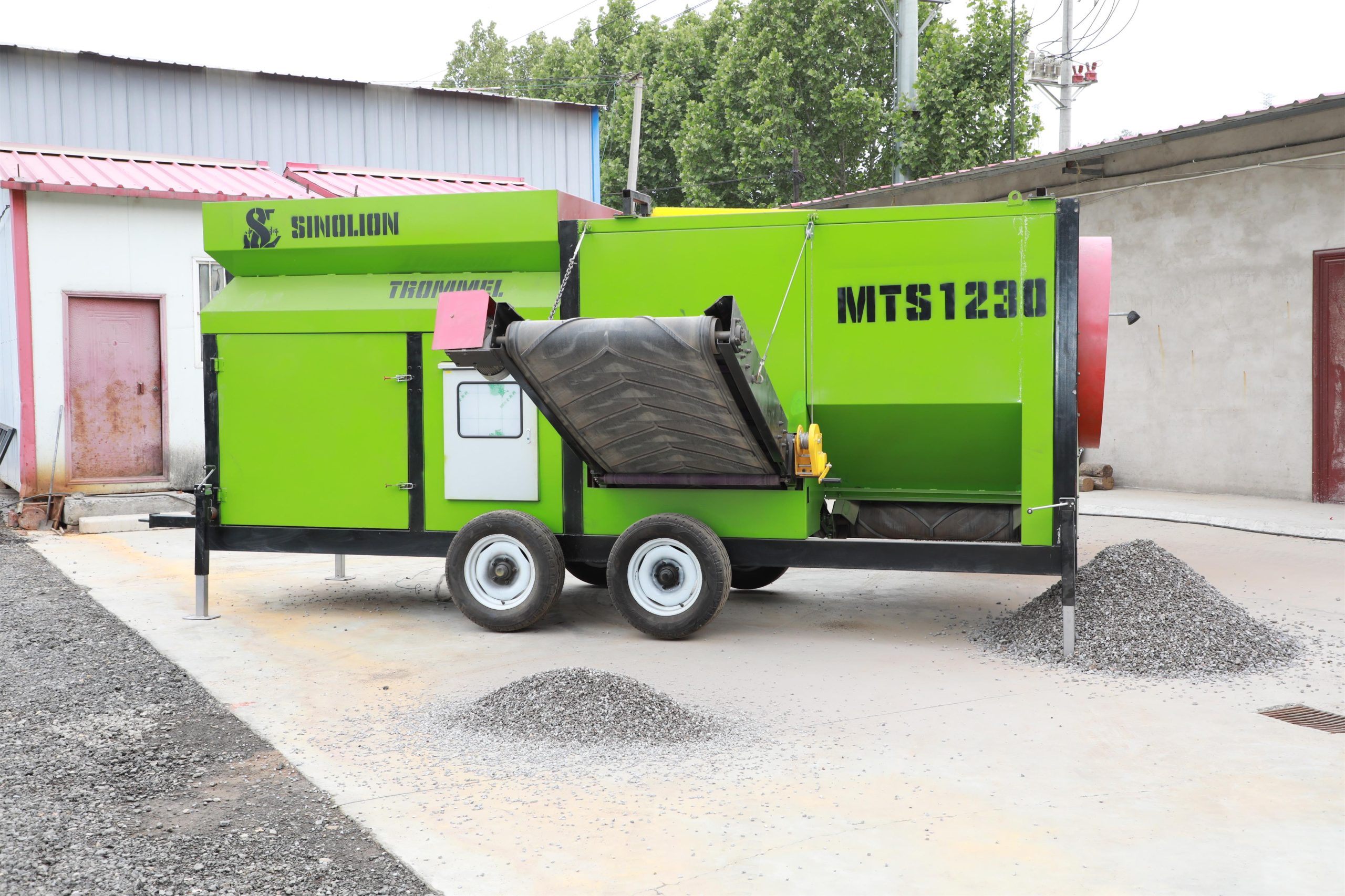

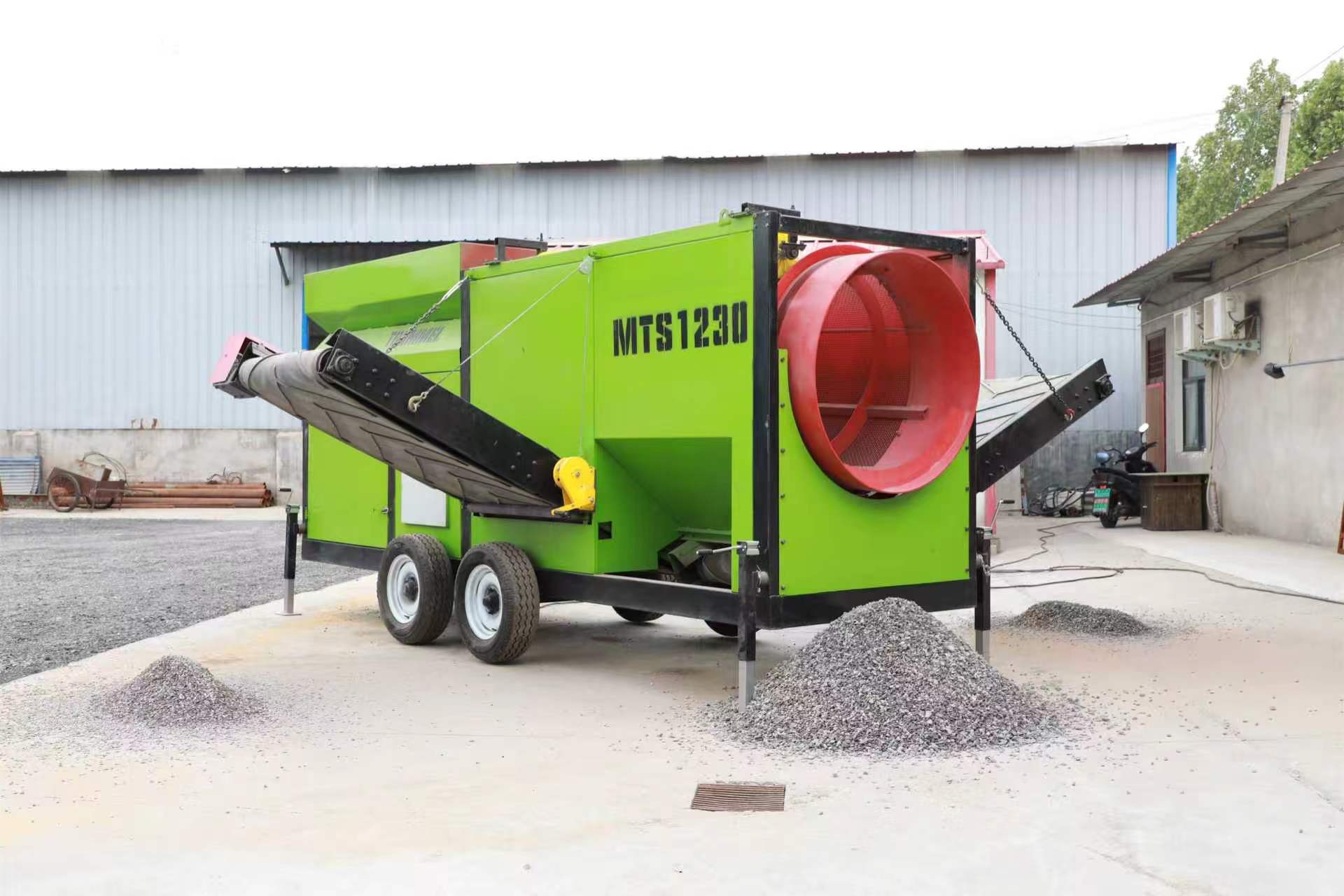

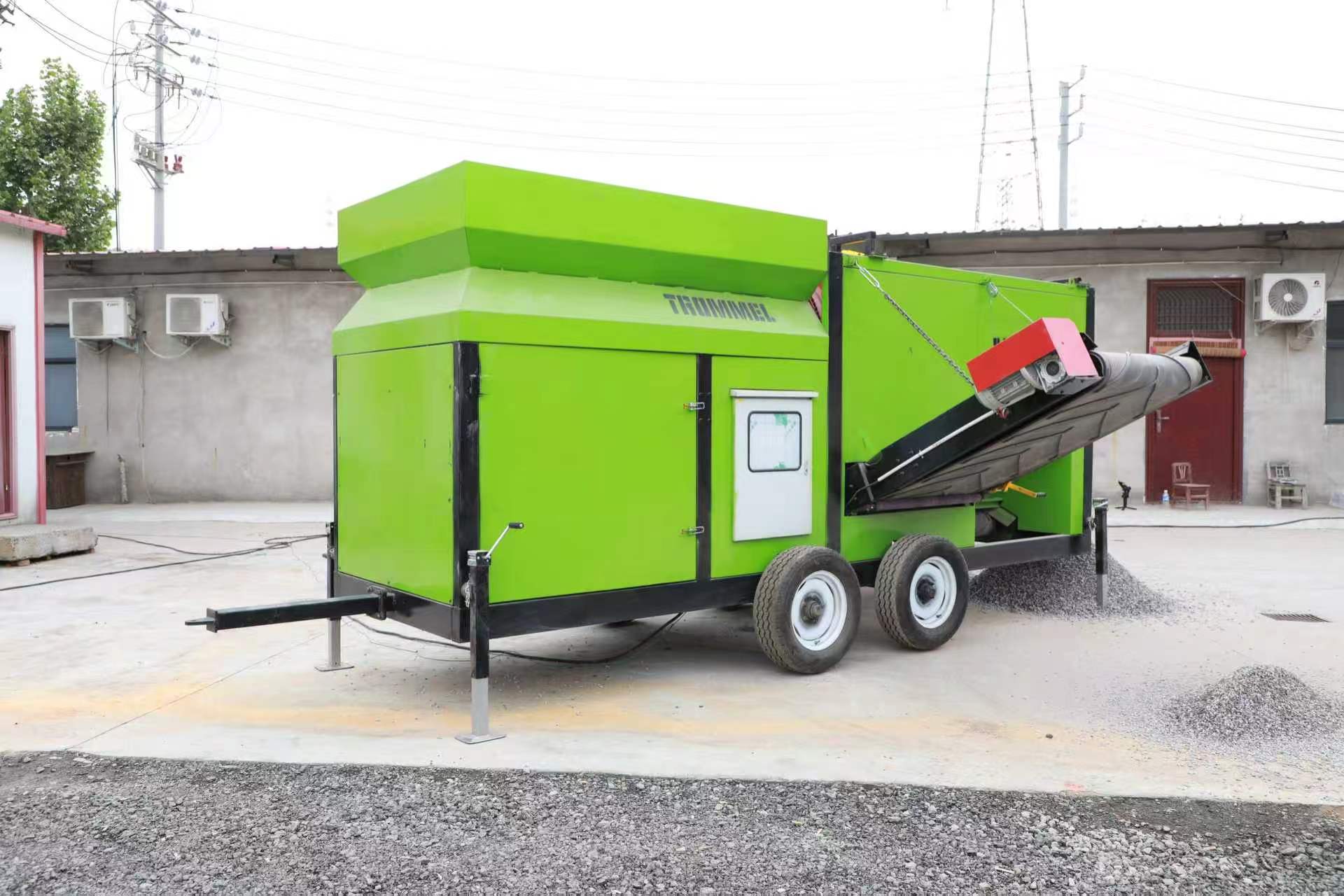

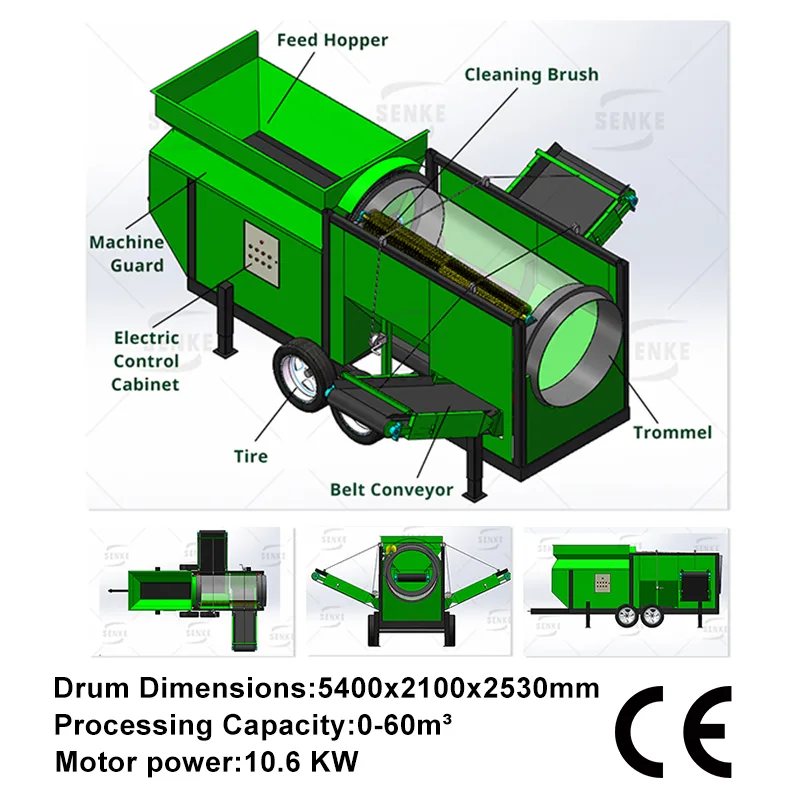

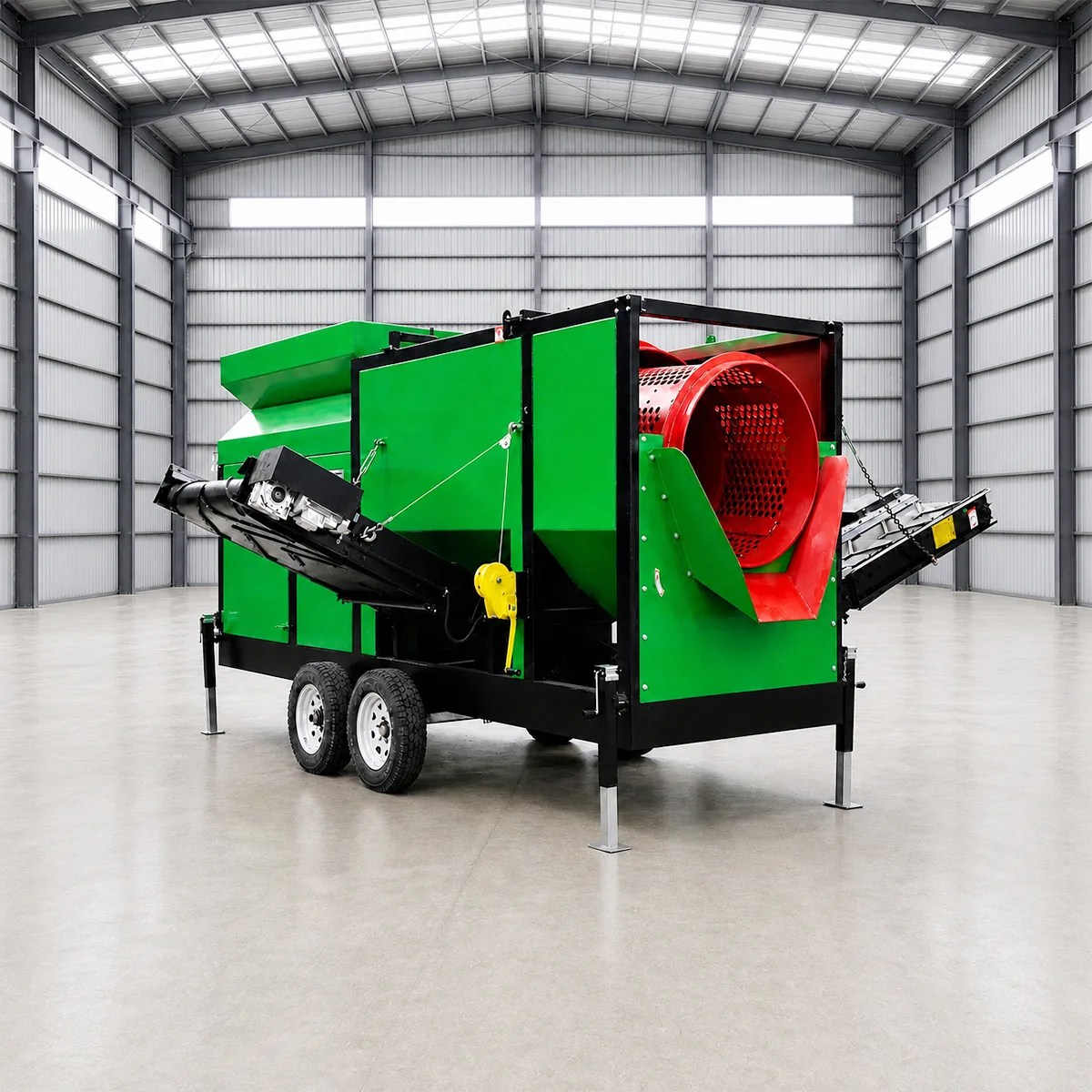

MTS1230 Trommel Screen

This 1200mm diameter and 3000mm long trommel screen is well designed to meet the needs of industrial-grade material conveying. With a strong handling capacity of 60 cubic meters per hour, it can easily cope with the continuous conveying tasks of large-scale materials. The drum has a sturdy and durable structure and is made of high-quality materials to ensure reliability and stability when carrying heavy loads. MTS1230 is easy to integrate into existing conveying systems or as a core component of new systems, providing flexible configuration options to meet specific application needs. Its efficient conveying performance and durability make it an ideal choice for industries such as industry, mining and construction.

Features & Benefits

Flexible Layout

Equipped with a traction device for easy movement, it can be freely arranged and adjusted according to the needs of the workspace and material flow, and adapt to different working environments and site requirements.

Low Maintenance Cost

High-quality drum design can effectively reduce wear and failure rate, which directly leads to a significant reduction in maintenance costs. The use of wear-resistant materials ensures the trommel screen's durability and reliability, reducing downtime and costs due to breakdowns and repairs. In addition, it is designed with ease of maintenance and replacement of parts in mind, further reducing long-term maintenance costs.

Safe and Reliable

Safety factors are taken into consideration during design, and protective devices are usually equipped. For example, protective covers and emergency stop switches to ensure safe shutdown when necessary.

High Processing Power

It can process up to 60 cubic meters of material per hour, which is suitable for rapid processing of large quantities of materials.

Specifications

Compare Models

Show Metric

General Dimensions and Weights
- Weight 7070 lbs 3210 kg
- Transport Length 18 ft 5.5 m
- Transport Width 7.2 ft 2.2 m
- Transport Height 7.2 ft 2.2 m
- Operation Length 18 ft 5.5 m
- Operation Width 15.8 ft 4.8 m
- Operation Height 8.2 ft 2.5 m
- Capacity 1060-2473 ft³/h 30-70 m³/h
Screen Drum
- Drum diameter 3.9 ft 1.2 m
- Roller length 9.8 ft 3 m
- Drum speed 16-22 rpm 16-22 rpm
- Drum Angle Adjustability 0-4 deg 0-4 deg
Screen Brushes
- Brush Diameter 86.6 in 220 cm
- Brush width 7.8 in 25 cm
- Bristle Material Nylon braiding Nylon braiding

Downloads

Product Manual
