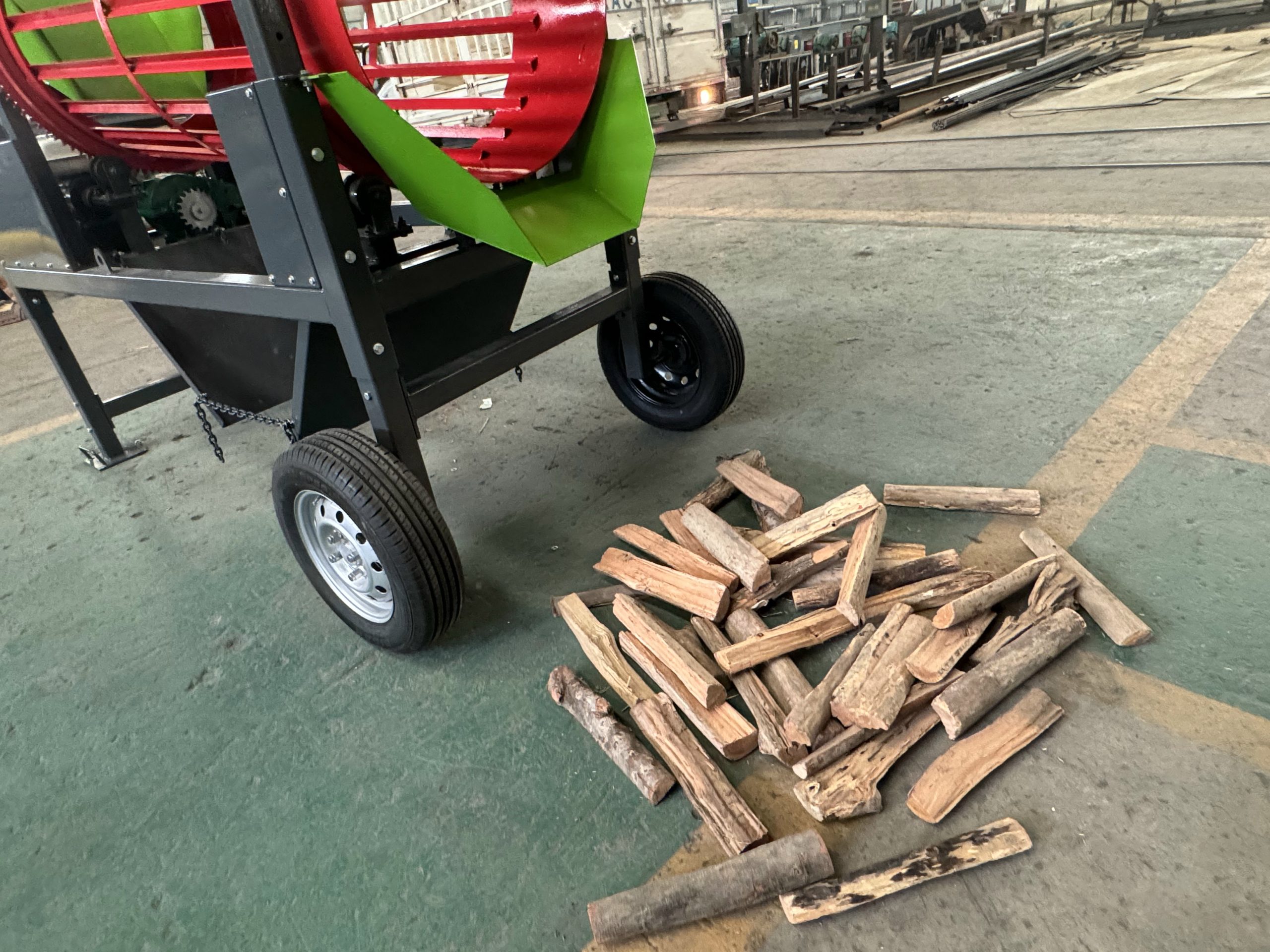

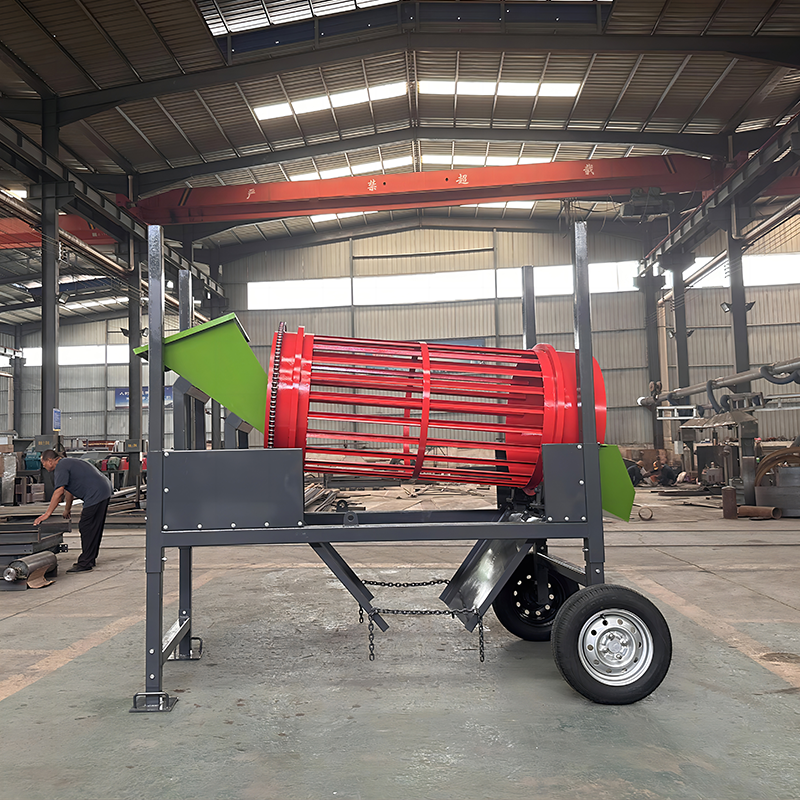

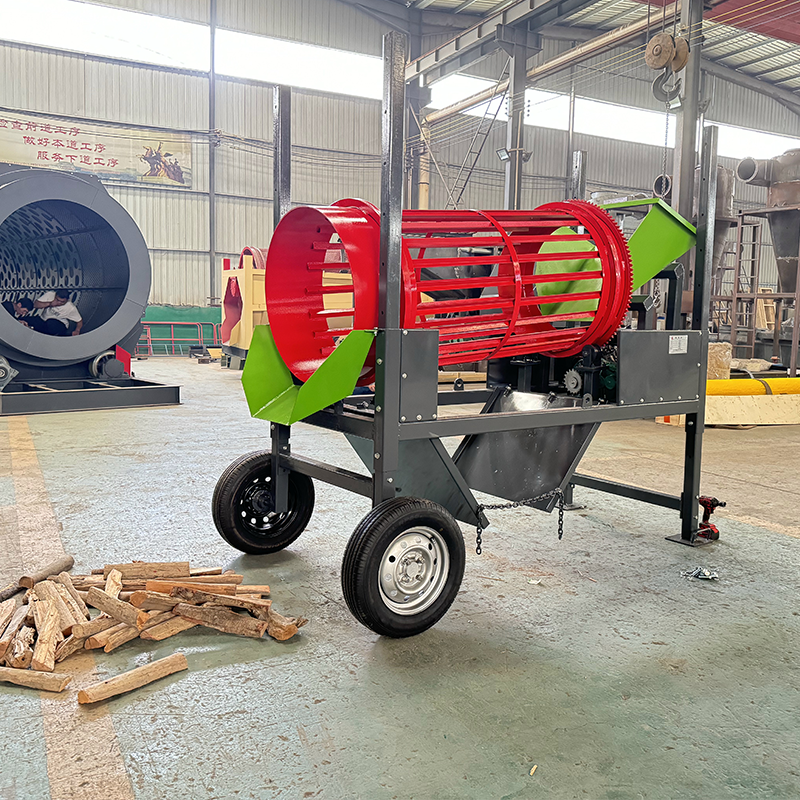

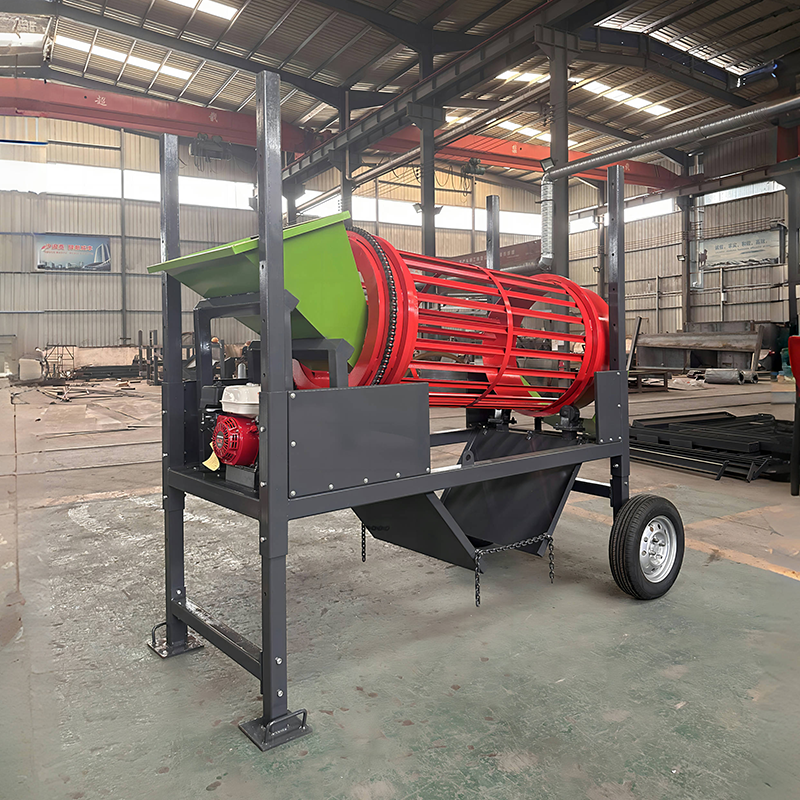

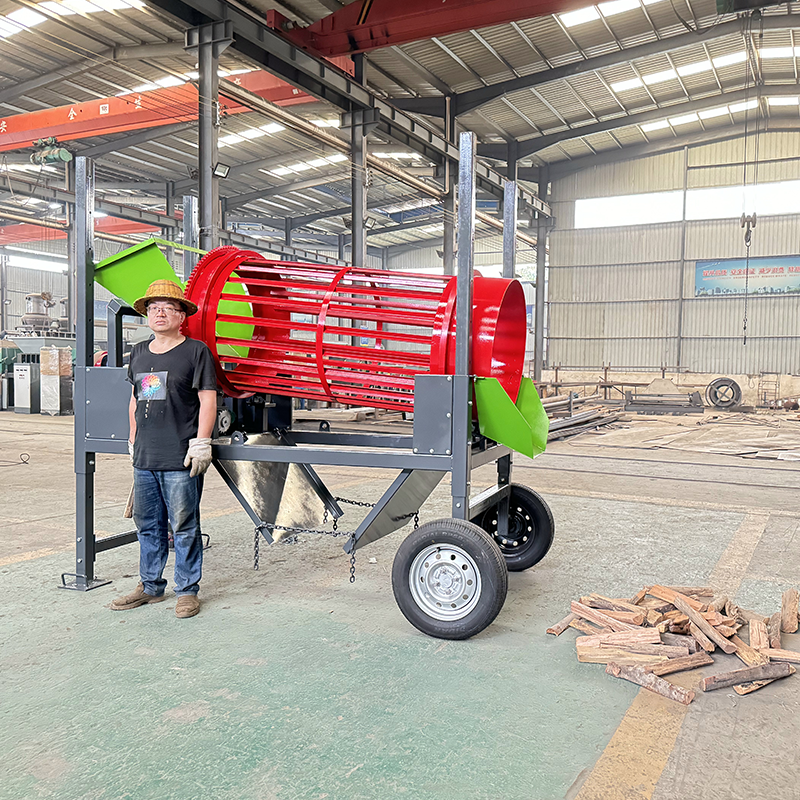

FTS0818 Firewood Trommel Screen

This firewood screen with a diameter of 800mm and a length of 1800mm is designed to meet the needs of medium-sized firewood processing. With a maximum processing capacity of 15 cubic meters per hour, it is suitable for processing all types of firewood. Whether it is hardwood or softwood, the FTS0818 can easily handle it. The firewood trommel screen has an excellent screening effect and can effectively classify firewood according to size, ensuring the efficiency and convenience of subsequent processing. In addition, the FTS0818 is also designed with ease of operation in mind. Users can quickly get started and improve work efficiency. Its moderate size and processing capacity make it an ideal choice for small and medium-sized wood processing sites. Whether it is a farm, a forestry farm or an individual business, it can meet your firewood processing needs.

Features & Benefits

Efficient Screening

The firewood trommel screen cylinder with a diameter of 800 mm and a length of 1800 mm uses angle irons with customizable spacing, which can be graded and screened according to the size of the firewood. This design allows firewood of different diameters to be separated quickly and accurately, ensuring the high efficiency and accuracy of the screening process.

High Production Efficiency

Compared with manual screening, which is time-consuming, inefficient, and prone to errors, the firewood screen can work uninterruptedly through the automated screening process, greatly improving production efficiency.

Reduce Labor Costs

Automated screening reduces dependence on manual labor, thereby reducing labor costs. This is particularly important for occasions where large amounts of firewood need to be processed, as it can reduce long-term labor expenses.

Improve Final Product Quality

By accurately classifying firewood by size, it can ensure that firewood for different purposes is properly handled, thereby improving the quality of the final product.

Specifications

Compare Models

Show Metric

General Dimensions and Weights
- Weight 1542lbs 700 kg
- Transport Length 8.5 ft 2.6 m
- Transport Width 3.4 ft 1.04 m
- Transport Height 4.6 ft 1.4 m
- Operation Length 8.5 ft 2.6 m
- Operation Width 4.6 ft 1.4 m
- Operation Height 7.8 ft 2.4 m
- Capacity 177-707 ft³/h 5-20 m³/h
Screen Drum
- Drum diameter 2.6 ft 0.8 m
- Roller length 5.9 ft 1.8 m
- Drum speed 16-22 rpm 16-22 rpm
- Drum Angle Adjustability 0-10 deg 0-10 deg
